Mig Welding Machine
Mig Welding Machine
Co2 Mig/Mag Welding Machine

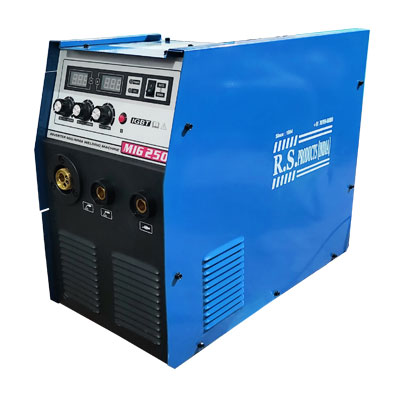

Mig Welding Inverter Based
Mig Welding Machine Diode Based
Mig Welding Machine Diode Based
| Power Source Input supply | Model | 252 | 452 |
| Voltage | V | 415 | 415 |
| Phase | Nos | 3 | 3 |
| Frequency | Hz | 50 | 50 |
| Rating 100% duty cycle | K.V.A | 6 | 12 |
| Max. input current | Amps | 8 | 15 |
| Open circuit voltage | V | 18-45 | 22-55 |
| Max. welding current | Amps | 250 | 400 |
| Type of cooling | xdfdf | Forced Air cooling | Forced Air cooling |
| Class of insulation | dddfd | class F | class F |
| Wire Feeder | Model | 252 | 452 |
| Mild Steel | mm | 0.8-1.0 | 0.8-1.2 |
| Stainless Steel | mm | 0.8-1.0 | 0.8-1.2 |
| Aluminium | mm | 1.2-1.6 | 1.6 |
| Wire Driver Motor | Type | Per, manent Magnet DC Motor |
Per,manent Magnet DC Motor |
| Drive System | TYPE | 2-Roll quick Release | 2-Roll quick Release |
| Wire Speed | Meter/Min | 0 to 20 | 0 to 20 |
